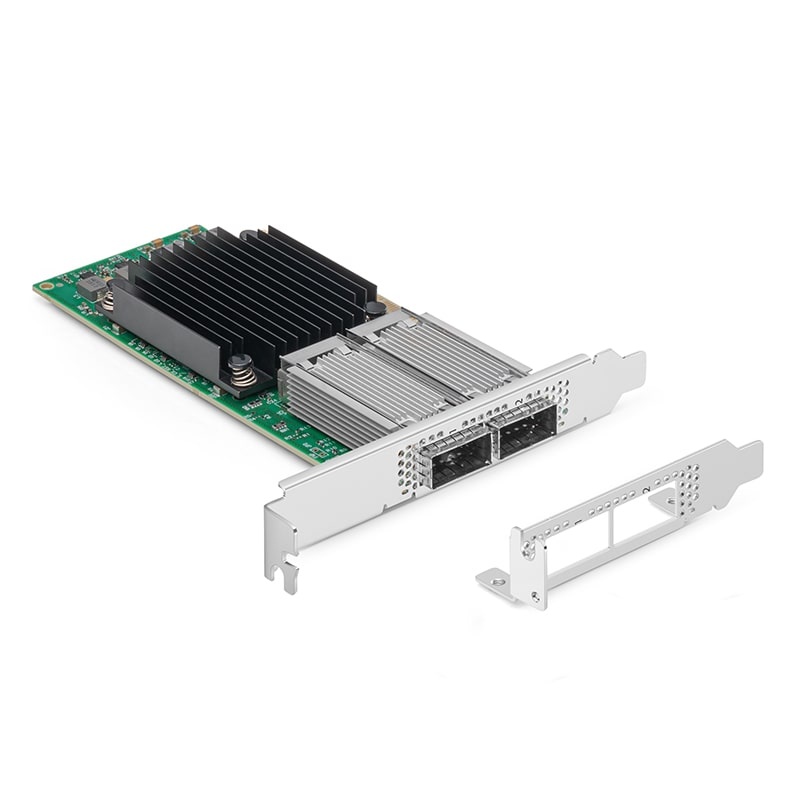

NVIDIA Mellanox MCX516A-CCAT ConnectX®-5 EN Network Interface Card, 100GbE Dual-Port QSFP28, PCIe3.0 x16, Tall Bracket
$899.00
- Product Code: MCX516A-CCAT
- Availability: In Stock
NVIDIA Mellanox MCX516A-CCAT ConnectX®-5 EN Network
Interface Card, 100GbE Dual-Port QSFP28, PCIe3.0 x16, Tall Bracket
ConnectX-5 MCX516A-CCAT Ethernet network interface
cards provide high performance and flexible solutions with up to two ports of
100GbE connectivity, 750ns latency, up to 148 million messages per second
(Mpps). For storage workloads, the 100 Gigabit Ethernet adapter card delivers a
range of innovative accelerations, such as Signature Handover (T10-DIF) in
hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads.
Product Highlights
- PCIe 3.0 x 16 Host Interface and 100GbE Dual-Port
Transmission
- Industry Leading RoCE v1/v2 delivers high throughput
and low-latency connectivity
- DPDK Message Rate of up to 148 Mpps
- Open vSwitch Offloads Reduce CPU Resource Consumption
- Support Network Virtualization Offloads Including
Geneve, VXLAN and NVGRE
- End-to-end QoS and Congestion Control to Anticipate and Eliminate Congestion
- Support Windows, RHEL/CentOS, VMware, FreeBSD, OFED and
WinOF-2
Specifications
Manufacturer
MELLANOX TECHNOLOGIES INC
Controller
Mellanox Technologies MT28800 Family ConnectX-5
Ports
Dual
Technology
Ethernet
Supported Ethernet Speeds
100/50/40/25/10/1GbE
Interface Type
QSFP28
Host Interface
PCIe 3.0 x16
Link Rate
8.0 GT/s
OS Support
Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2
Cabling Type
QSFP28 Transceiver, DAC and AOC
RDMA
Yes
RoHS R6 Compliant
Yes
Controller | ConnectX®-4 Lx | ConnectX®-5 | ConnectX®-5 | ConnectX®-5 | ConnectX®-6 Dx |
Ports | Dual-Port | Dual-Port | Single-Port | Dual-Port | Dual-Port |
Supported Ethernet Speeds | 25/10/1GbE | 25/10/1GbE | 100/50/40/ 25/10/1GbE | 100/50/40/ 25/10/1GbE | 100/50/40 25/10/1GbE |
Systems Interface Type | PCIe 3.0 x8 (8.0 GT/s) | PCIe 3.0 x8 (8.0 GT/s) | PCIe 3.0 x16 (8.0 GT/s) | PCIe 3.0 x16 (8.0 GT/s) | PCIe 4.0 x16 (16.0 GT/s) |
RDMA over Converged Ethernet (RoCE) |  | | | | |
Zero Touch RoCE (ZTR) | | | | | |
ASAP2 (Virtual Switch offload) | — | | | | |
SR-IOV | | | | | |
Hardware-based I/O Virtualization | | | | | |
NVMe-oF Target Offload | — | | | | |
Burst Buffer Offloads | — | | | | |
Hardware Offload of VXLAN, NVGRE, and GENEVE Overlay Networks | — | | | | |
