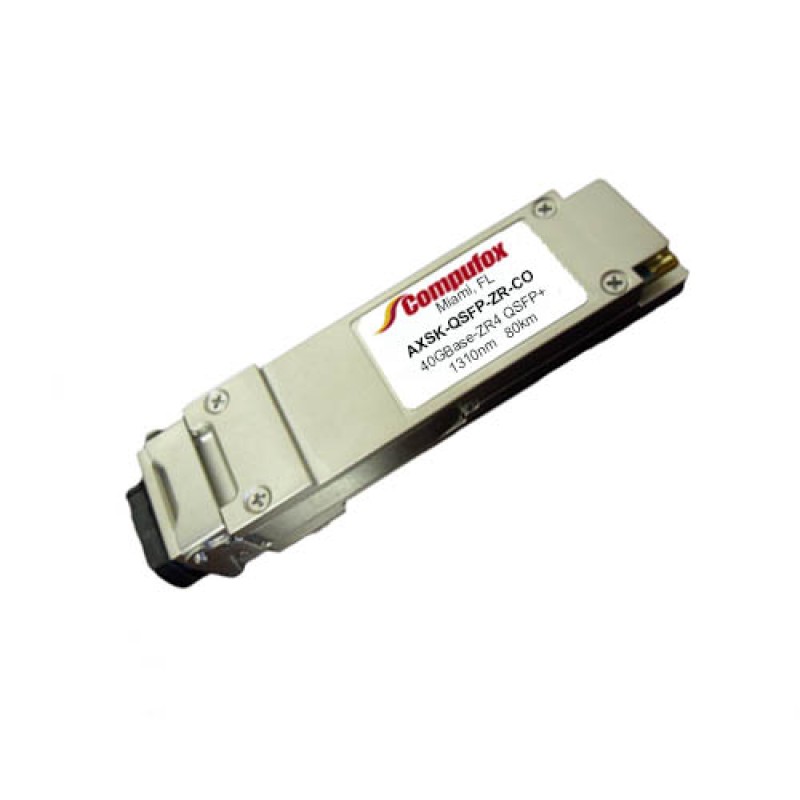

A10 Networks AXSK-QSFP-ZR Compatible 40GBase-ZR4 QSFP+ Transceiver (SMF, 1310nm, 80km, LC, DOM)
$1,895.00
- Product Code: AXSK-QSFP-ZR-CO
- Availability: In Stock
Available Options
A10 Networks AXSK-QSFP-ZR Compatible 40GBase-ZR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 80km, LC, DOM).
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and RoHS standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Specifications
|
Form
Factor |
QSFP+ |
Data
Rate |
40Gbps |
|
Wavelength
* |
1310nm
|
Max
Cable Distance |
80km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
EML |
Receiver
Type |
PIN |
|
TX
Power |
1~6dBm |
Receiver
Sensitivity |
<-25dBm |
|
Powerbudget |
28dB |
Receiver
Overload |
-8dBm |
|
Power
Consumption |
≤4.5W |
Extinction
Ratio |
>8.2dB |
|
Host
FEC * |
Supported |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
QSFP+ MSA, IEEE 802.3ba |
* Lane Center Wavelengths Range
L0 1294.53-1296.59nm
L1 1299.02-1301.09nm
L2 1303.54-1305.63nm
L3 1308.09-1310.09nm
* Full 40km reach requires the use of FEC on the host platform.
