M.2 A+E 1-port Open SFP Gigabit Ethernet Network Adapter with Intel WGI210AS Chip
$100.00
- Product Code: M2AE-GE-1S
- Availability: In Stock
M2AE-GE-1S is a single SFP port Gigabit Ethernet network adapter with M.2 A+E Key interface based on the Intel I210 main control chip, with high performance, high stability, high quality and very good compatibility.
This adapter card adopts the Mini structure design of M.2 A+E Key interface and can be adapted to various compatible M.2 interface slots. It is designed to be widely used in small PCs, industrial computers, single board computers, Digital multimedia and other devices with M.2 interface slots can be used to solve the problem of compact device space. This Ethernet adapter card supports a dual-port 1000Mbps link rate.
The Ethernet adapter uses a Gigabit SFP communication interface design, The user can use the appropriate structure according to the type of slot. The user can also combine multiple use occasions to match the requirements Fiber optic module. At the same time, it has excellent safety and stability when used in a complex environment.
Features
- Single SFP port Gigabit Ethernet network adapter with M.2 A+E Key interface
- The Mini structure design with M.2 A+E Key interface can be adapted to various compatible M.2 interface slots
- It is designed to be widely used in small PCs, industrial computers, single board computers, digital multimedia and other devices that contain M.2 interface slots
- It has high performance, high stability, high quality and very good compatibility
- Compliant with PCI Express MINI card Electromechanical Specification 1.2
- Compliant with PCI Express base specification Revision1.1
- Compliant with PCI bus power management interface specification Revison1.2
- SFP slot supporting the following transceivers: 1000Base-SX, 1000Base-LX, 1000Base-BX SFPs
- Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
- Supports Receive-side scaling (RSS)
- Supports IPv4, IPv6 protocols
- Supports Jumbo Frames up to 9K
- Supports Checksum offloading
- Drivers for Win7/ Win8/ Win10/Vista/Sever2008/Sever2012/Linux/DOS
Specifications
- Controller : Intel WGI210AS
- Bracket: Full-height & half-height configurations
- Power Consumption: 1.0W
- Bus Type: M.2 A+E Key
- Data Rate: 1000MbE
- Connector: 1 * SFP
- System Support
- Windows 7/8/8.1/10
- Windows Server2008 R2/2012 R2/2016 R2/2019 R2
- Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later
- Linux CentOS/RHEL 6.x / 7.x or later
- Ubuntu 14.x/15.x/16.x or later
- VMware ESX/ESXi 4.x/5.x/6.x or later
Package Contents

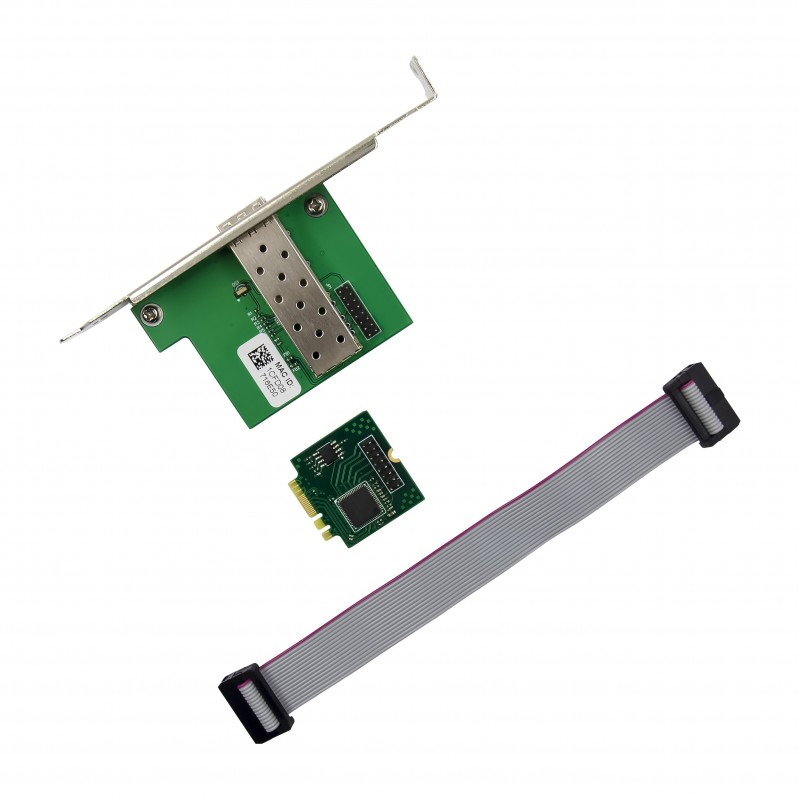

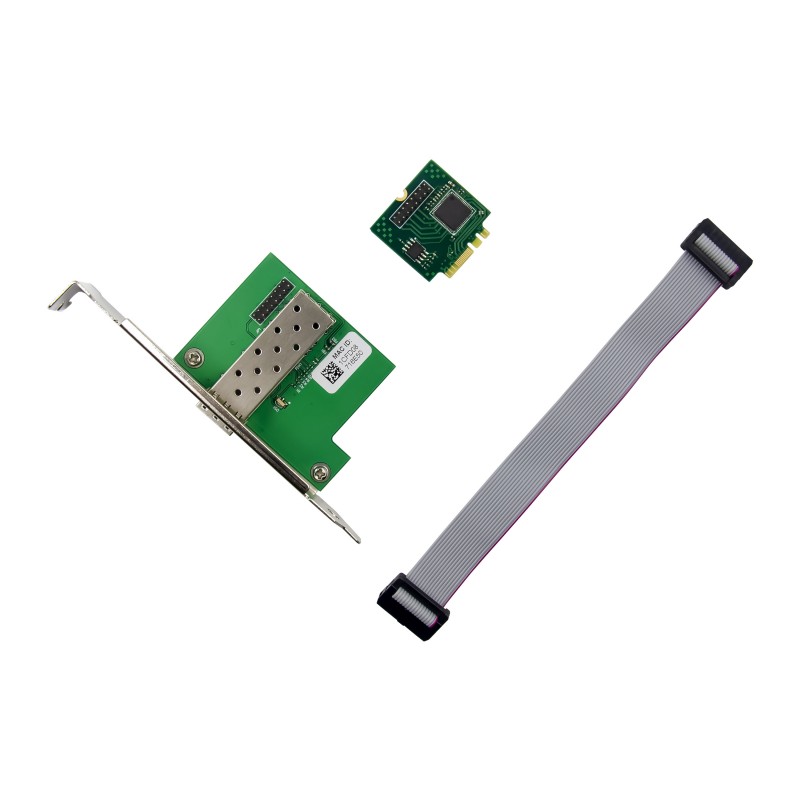

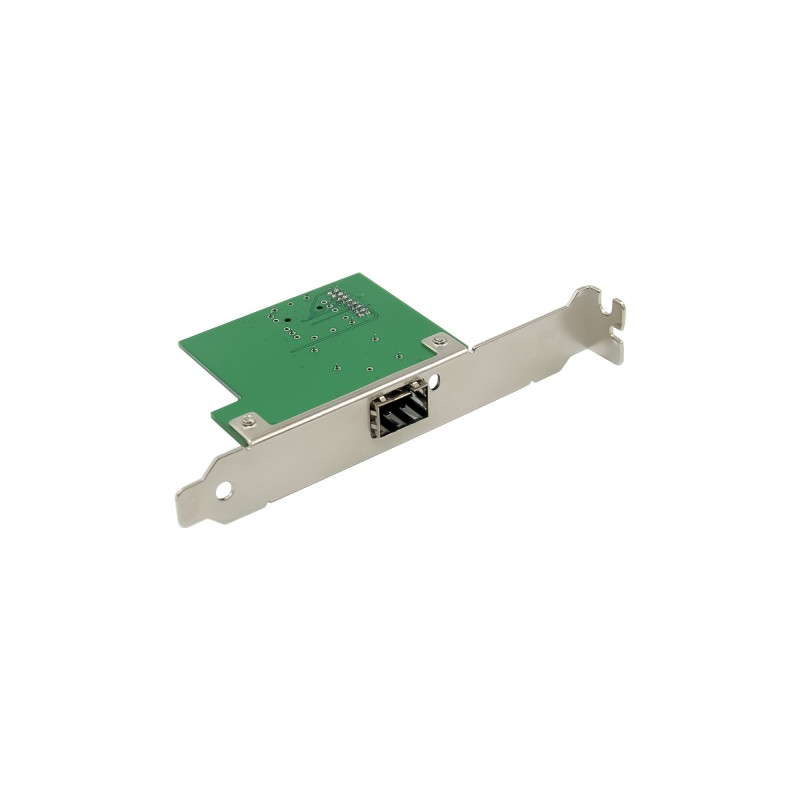

- 1 x M.2 A+E Key Intel I210 SFP Network Adapter Main board
- 1 x M.2 A+E Key Intel I210 SFP Network Adapter daughter board
- 1 x SATA cable
- 1 x 8-pin power cable
- 1 x User Manual
- 1 x Driver CD
- 1 x Low profile bracket
