M.2 B+M 1-port RJ45 Realtek RTL8111F Chipset Gigabit Ethernet Network Adapter
$10.00
- Product Code: M2BM-GE-1T
- Availability: In Stock
M2BM-GE-1T is a high performance 1000Baset-T Ethernet network adapter card. It allows you to add a PCIe x1 High-Speed 1000 /100 /10 Mbps BASE-T RJ-45 Ethernet Gigabit LAN through your IPC M.2 B Key or M Key slot. It is backward compatible to 10/100baset-t networking. Adopt Realtek RTL8111F master control chip, the adapter has stable performance and good compatibility. It supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
High Performance: Solid heat sink can effectively discharge excess heat, prevent high temperature damage, improve working efficiency and long service life. Thickened golden finger, which is more reliable to joint, reduce hardware contacting fault, not easy to cause packet loss and distortion.
The high quality PCI Gigabit NIC comes with both full height and low profile brackets. It supports systems including Windows 7, 8 and 10 Windows Server 2008 R2,2012,2016,2019, Linux 2.6.31 to 4.11.x.LTS versions.
Features
- Fully compliant with Microsoft® NDIS5, NDIS6(IPv4, IPv6, TCP, UDP) Checksum and Segmentation Task-offload (Large send and Giant send) features, and supports IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q Virtual bridged Local Area Network (VLAN). T
- Supports IEEE 802.1P Layer 2 Priority Encoding. Supports IEEE 802.1Q VLAN tagging
- Embedded OTP memory can replace the external EEPROM. Serial EEPROM
- Supports Full Duplex flow control (IEEE 802.3x). Supports jumbo frame to 9K bytes. Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports pair swap/polarity/skew correction. Crossover Detection & Auto-Correction
Specifications
- Chipset: Realtek RTL8111F
- Bus Type: 1 x 59 pin M.2 key B+M male
- Connector: 1 x Gigabit LAN RJ45 female
- Form factor: M.2 2242
- Suitable for M.2 slot with key M or B+M based on PCIe
- Data transfer rate
- Ethernet up to 10 Mbps (Half/Full Duplex)
- Fast Ethernet up to 100 Mbps (Half/Full Duplex)
- Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
- Network specifications:
- IEEE 802.3: 10BASE-T
- IEEE 802.3u: 100BASE-TX
- IEEE 802.3ab: 1000BASE-T
- Support Auto MDI-X (automatic detection of standard or crossover network cable)
- Support IEEE 802.3az (Energy Efficient Ethernet)
- Support full duplex operation with IEEE 802.3x flow control
- Supports IEEE 802.1P layer 2 priority encoding
- Supports IEEE 802.1Q insertion und removal
- Supports Jumbo Frame up to 9k
- LED indicator for power and Ethernet connection
- Cable length without connectors: 20 cm

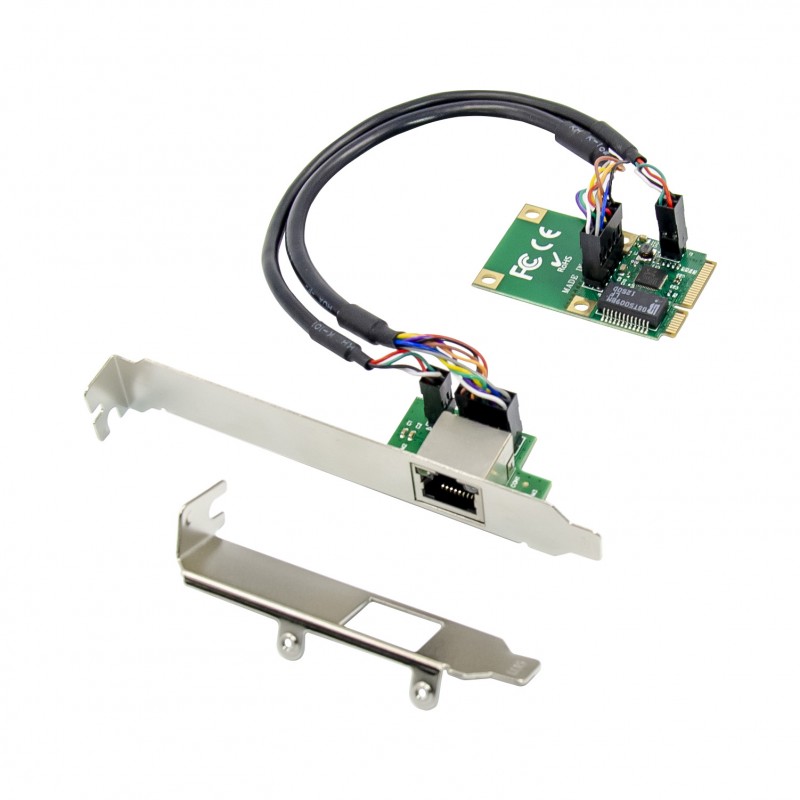

Package Contents
- Converter
- Low profile bracket
- Driver CD
- User manual
