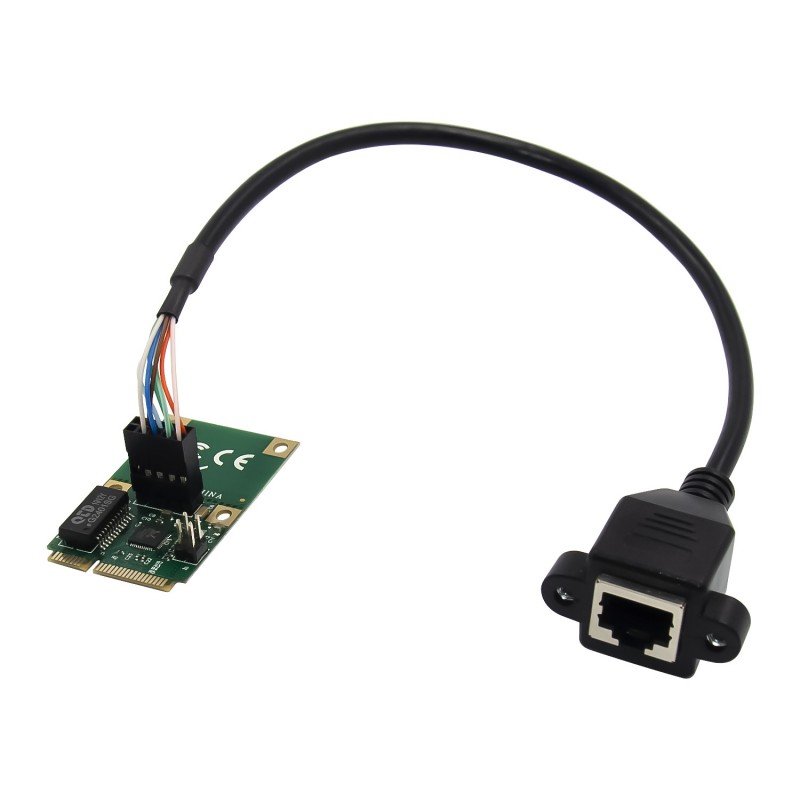

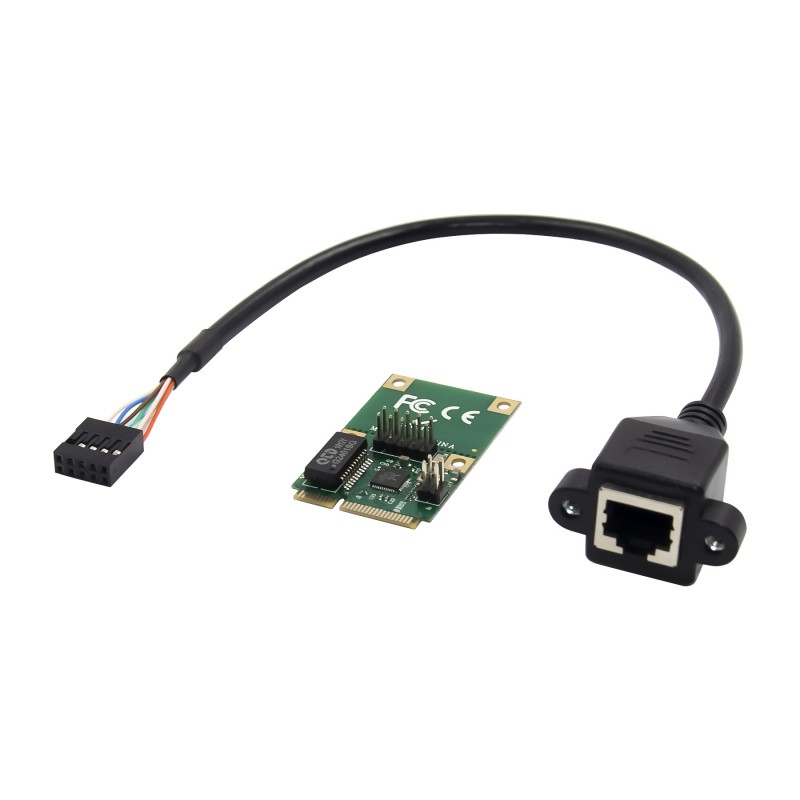

Mini PCI Express 1-port RJ45 Gigabit Ethernet Network Adapter with Panel-Mount Female RJ45 Connector
$13.50
- Product Code: MPE-GE-1T-8111F
- Availability: In Stock
MPE-GE-1T-8111F is an Ethernet card for embedded PC. The card follows the Mini PCI-e standard which is compliant with PCI Express x 1 classification and small form factor (30×50.95 mm). This board fits in any host computer that has mini express card slots. MPE-GE-1T-8111F is a highly cost-effective solution to expand Gigabyte network for your computer.
The Mini PCIe RTL8111F Gigabit Network card is a high performance 10/100/1000BASE-T Ethernet LAN card. It is compliant with the IEEE802.3u specification for 10/100Mbps Ethernet and the IEEE802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and it can auto-configure related bits of the PCI power management registers in PCI configuration space.
Featrues
- Support existing CAT-5 UTP cabling with automatic crossover detection
- Fully compliant with PCI-Express Base Specification Revision1.1
- Single-Lane(x1)PCI-Express with throughput up to 2.5Gbps
- Compatible with PCI-E MINI Card Electromechanical specification revision1.2
- Compatible with Full/Half size MINI card type form factor
- Fully Plug and Play compatible
- A high performance 1000BASE-T Ethernet controller card
- Backwards compatible to 10/100BASE-T networking
- 10/100/1000Mbps data rate auto negotiation operation
- Fully compliant with IEEE802.3, 802.3 u,and 802.3ab
- Support full duplex flow control(IEEE802.3x)
- Support IEEE802.1P Layer 2 Priority Encoding
- Support IEEE802.Q VLAN tagging
- Support jumbo frame to 9K bytes
- Crossover Detection and Auto Correction operation
Package Contents
- 1 x Mini PCIe RTL8111F Gigabit network adapter
- 1 x 10-Pin network cable
- 1 x User’s Manual
- 1 x Driver CD
