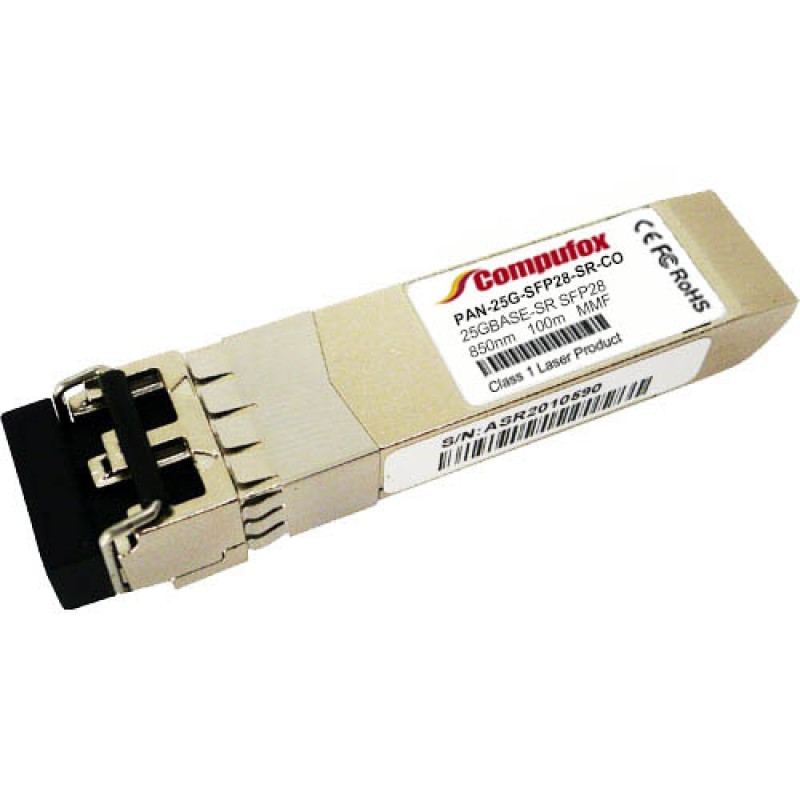

Palo Alto PAN-25G-SFP28-SR Compatible 25GBASE-SR SFP28 Transceiver (MMF, 850nm, 100m, LC, DOM)
$35.00
- Product Code: PAN-25G-SFP28-SR-CO
- Availability: In Stock
Available Options
Palo Alto Networks PAN-25G-SFP28-SR Compatible 25GBASE-SR SFP28 Optical Transceiver Module (MMF, 850nm, 100m, LC, DOM).
Specifications
|
Form
Factor |
SFP28 |
Data
Rate |
25
Gbps |
|
Wavelength |
850nm |
Distance |
100m@OM4 |
|
Connector |
LC
Duplex |
Cable
Type |
OM3/OM4
MMF |
|
Transmitter
Type |
VCSEL |
Receiver
Type |
PIN |
|
TX
Power |
-8.4~2.4dBm |
Receiver
Sensitivity |
<-10.3dBm |
|
Powerbudget |
1.9dB |
Receiver
Overload |
2.4dBm |
|
Power
Consumption |
<1W |
Extinction
Ratio |
＞2dB |
|
DDM |
Support |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
IEEE 802.3ba, SFP28 MSA |
