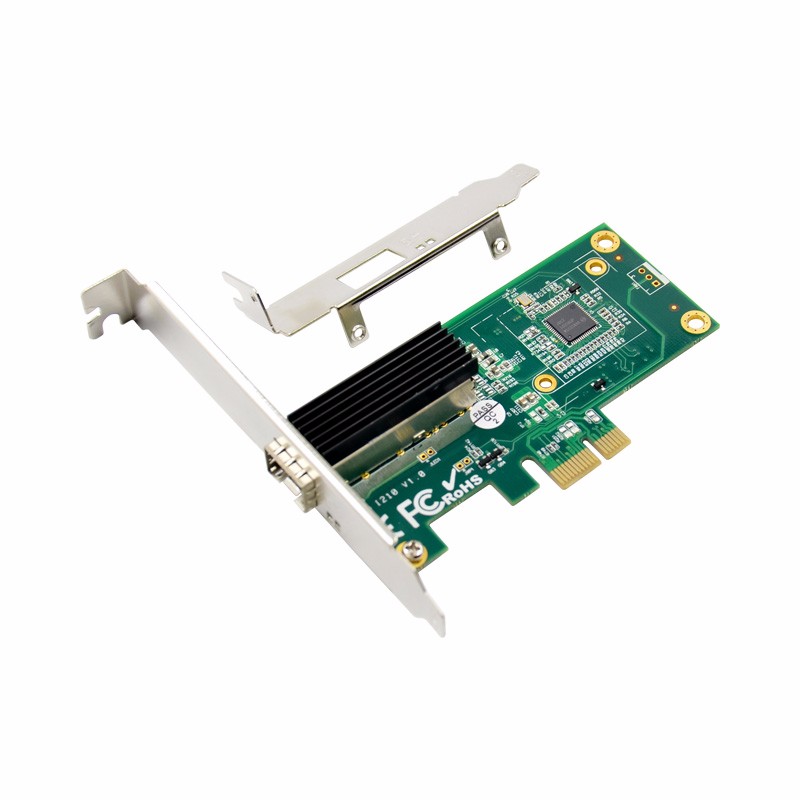

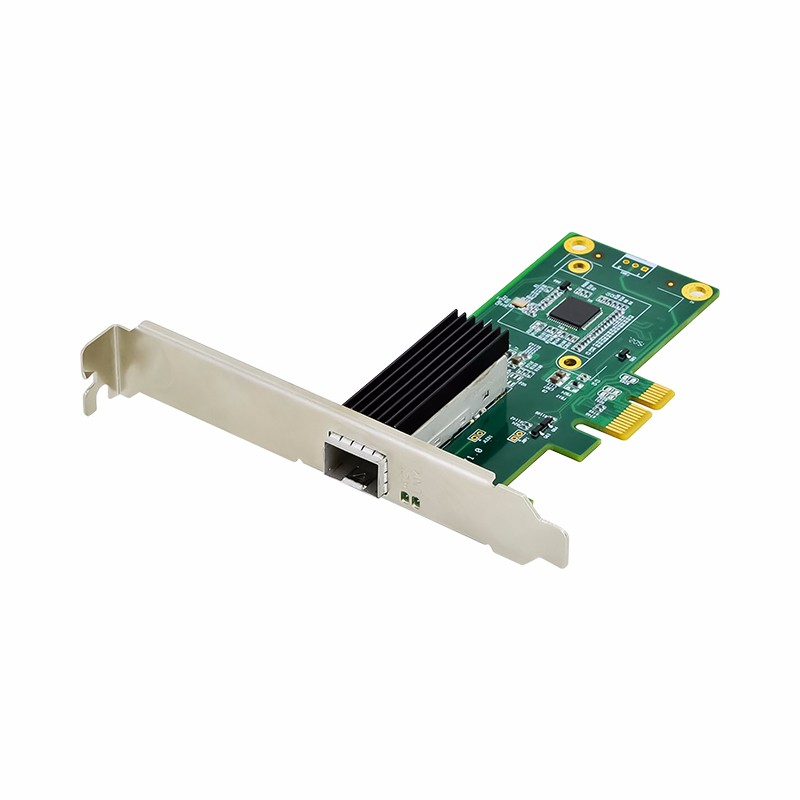

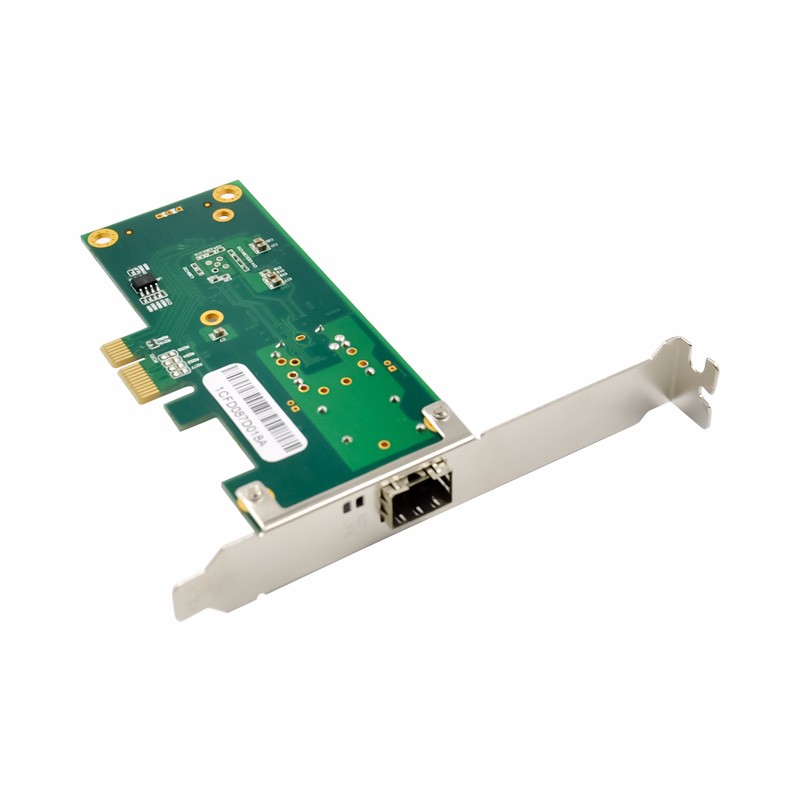

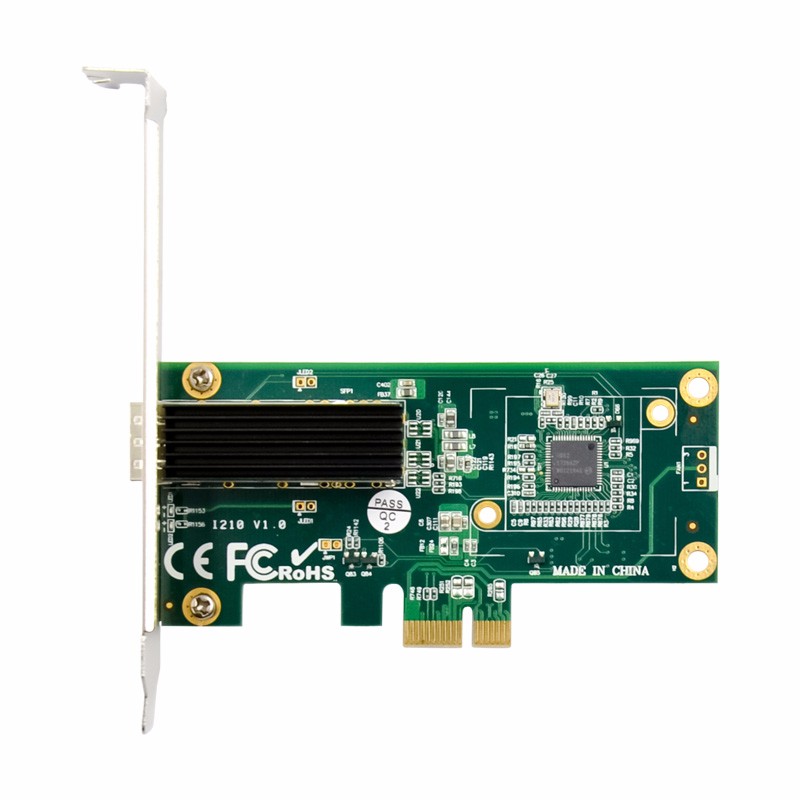

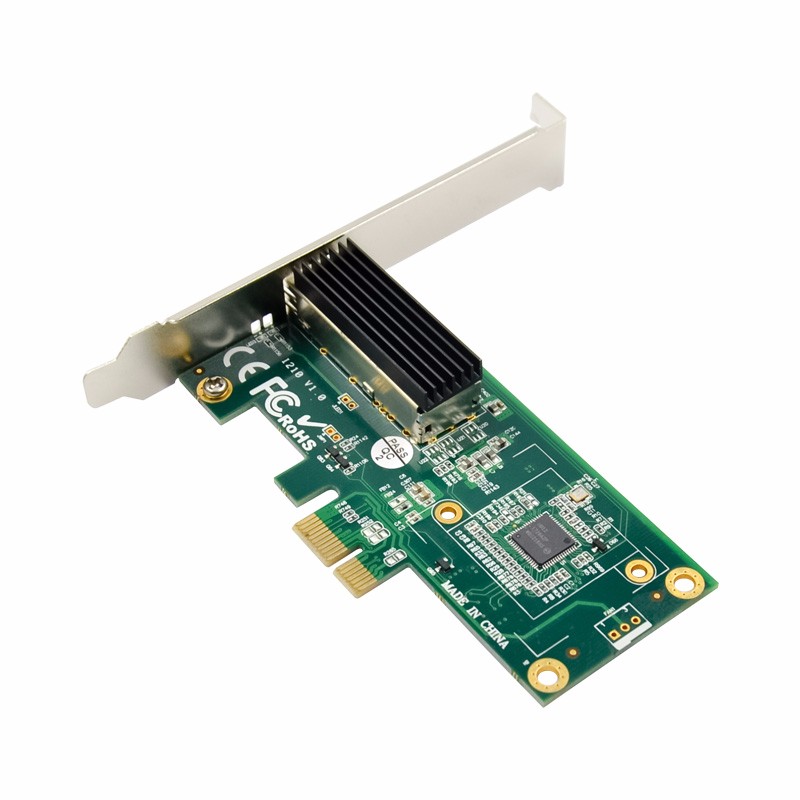

PCIe x1 Single SFP Port Intel WGI210AS Chipset Gigabit Ethernet Network Adapter
$45.00
- Product Code: PX1-GE-1S-I210
- Availability: In Stock
PX1-GE-1S-I210 is a PCIe 2.1 x1 1Gbps Single SFP Port Ethernet Fiber Network Adapter based on Intel I210 chipset, and is compatible with PCIe x4,x8,x16 slot. System I/O is no longer the bottleneck of network applications. In the networking connections, PCI Express dedicated input /output (I / O) bandwidth to ensure the network card to use the superior performance without taking up bus bandwidth.
The Ethernet Server Adapter has high performance, high stability, high quality and very good compatibility, compatible with all brands of computers and fiber switches. This adapter is the ideal solution for deploying high-performance fiber-to-the-desktop (FTTD) applications and network security industry.
Features
- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Efficient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 (2.5GT/s)
- Reliable and proven Gigabit Ethernet technology
Specificaions
- Chipset: Intel WGI210AS
- Bus Type: PCI Express* 2.1 (2.5GT/s) x1
- Connector: 1 * SFP slot
- Transmission Rate: 1000 Mbps
- Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- IEEE Standard / Network topology
- IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T
- IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)
- System Requirements
- Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
- Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
- DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
- Applicable Fields: Desktops, Servers, Workstations
Hardware
- Certifications: FCC, CE, RoHS
- Metal Bracket: Full-height end bracket / Low-profile end bracket
- LED Indicators
- Link/Activity LED: off = No Link; on = Link; Blinking = Activity
- Speed LED: Not illuminated = 10Mb/s; green = 100Mb/s; amber = 1 Gb/s
Environmental
- Operating Temperature: 0 - 55 ℃ (32 - 131℉)
- Storage Temperature: -40 - 70 ℃ (-40 - 158 ℉)
- Storage Humidity: 90% Non-condensing relative humidity at 35 ℃
Packing details
- Dimensions (unit: mm): L116 x W120 x H18
- Package Size(LxWxH): 175x 125 x 30 mm
Package Contents
- 1 * PCIE I210AS Single Gibabit SFP Fiber Server NICs
- 1 * Installation Guide
- 1 * Driver CD
- 1 * Low profile bracket
