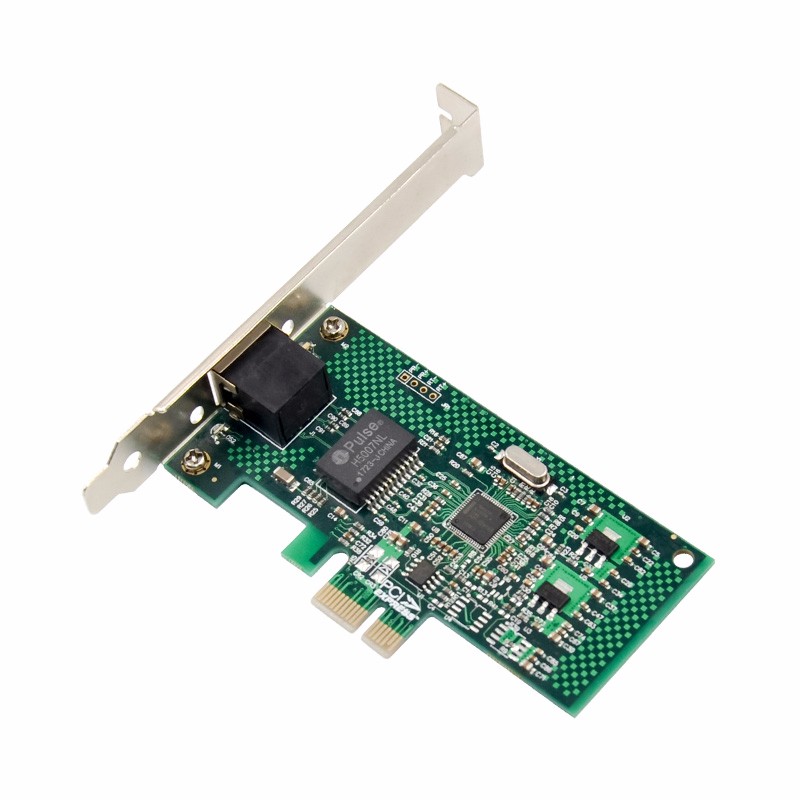

PCIe x1 1-port RJ45 Intel JL82574L Chipset Gigabit Ethernet Network Interface Card
$9.00
- Product Code: PX1-GE-1T-82574
- Availability: In Stock
For PCs with PCI Express (PCIe) slots, the Gigabit Ethernet Network Interface Card offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Network Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and maintains full bandwidth capacity with the dedicated bandwidth of a PCIe input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to use this adapter as an entry-level server adapter as well.
Features
- Delivers increased performance while significantly reducing CPU usage
- Reduces deployment and training costs and enables easy, quick migration to Gigabit Ethernet
- Automatically compatible with Ethernet, fast Ethernet, and Gigabit Ethernet networks
- Enables widespread deployment
- Allows low-power consumption, remote wake, and remote booting
- Reduces support costs with remote management based on industry-wide standards
- Provides point-and-click power over inpidual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration
- Dynamically tests and reports network problems (error rate, cable length) and automatically compensates for cable issues
- Efficient packet prioritization
- Minimizes the overhead of interrupts
- Allows load balancing of interrupt handling between different cores/CPUs
Specifications
- Chipset: Intel JL82574L
- Bus Type: PCI Express* 1.1 (2.5GT/s) x1
- Connector: 1 * RJ-45 (Copper)
- Data Transfer Rate: 10/100/1000 Mbps
- Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- IEEE Standard / Network topology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az
- System Requirements
- Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
- Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
- DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
- Applications: Desktops, Servers, Workstations
Hardware
- Certifications: FCC, CE, RoHS
- Metal Bracket: Full-height end bracket / Low-profile end bracket
- LED Indicators
- Link/Activity LED: off = No Link; on = Link; Blinking = Activity
- Not illuminated = 10Mb/s; green = 100Mb/s; amber = 1 Gb/s
Environmental
- Operating temperature: 0 ~ 85 ℃
- Storage temperature: -40 ~ 85 ℃
- Storage humidity 90% Non-condensing relative humidity at 35 ℃
Package Contents
- 1 * PCIe Single Gigabie RJ45 Ethernet Nic 82574L
- 1 * User's Manual
- 1 * Driver CD
- 1 * Low profile bracket
