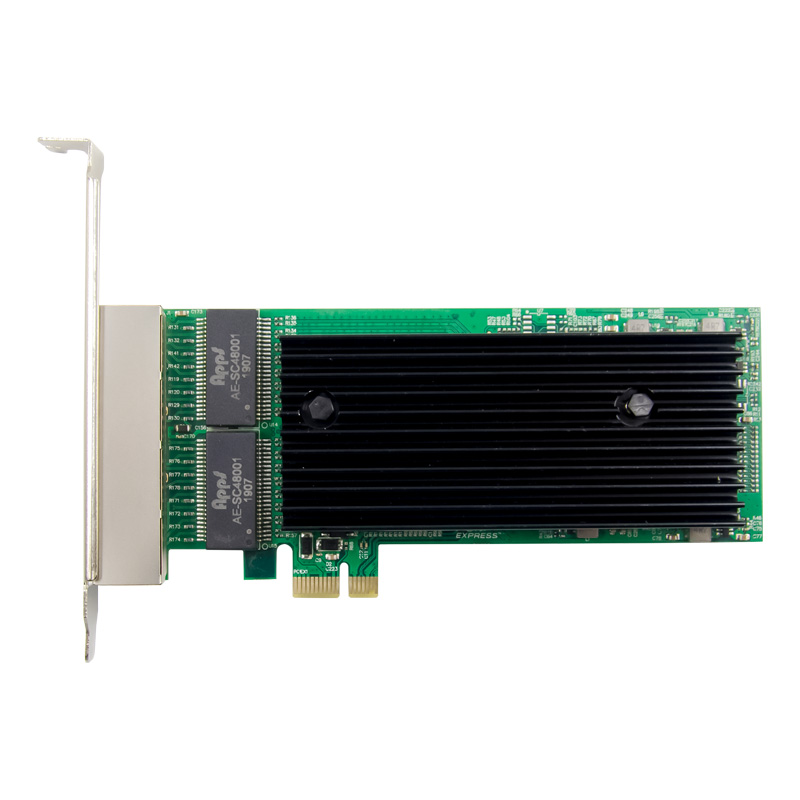

PCIe x1 4-port RJ45 Intel JL82576EB Chipset Gigabit Ethernet Network Interface Card
$40.00
- Product Code: PX1-GE-4T-82576
- Availability: In Stock
PX1-GE-4T-82576 is a PCI Express x1 10/100/1000Mbps Quad RJ45 Port Ethernet adapter based on Intel 82576 chipset, compatible with PCIe x4, x8, x16 lane. The adapter is mainly designed for Industrial Control, and the performance is optimized, so that the system I/O is no longer the bottleneck of high-end network applications .The adapter has integrated hardware acceleration to perform TCP / UDP / IP checksum offload and TCP segmentation tasks. Host processing technology can sub-load accelerator, release CPU resources occupied to free up more CPU resources to handle with other applications. The adapter is based on Intel 82576EB Gigabit Ethernet MAC PHY (Media access Controller and physical Interface Transceiver) quad port controller.
Features
- PCIe 2.0 (2.5 GT/s) x1
- Dual Port 10/100/1000Mbps adapters
- MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab)
- RJ45 Connectivity
- Network Virtualization
- Improves performance and throughput by reducing the I/O overhead due to the software virtualization layer
- Data Plane Development Kit (DPDK) support
- Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistic counters
- Low profile and full-height bracket
Specifications
- Chipset: Intel 82576EB
- Bus Type: PCI Express v2.0 (2.5GT/s) X1 , operable in x4, x8 or x16 slots
- Connector: 4 x RJ-45 (Copper)
- Transmission Rate: 10/100/1000 Mbps
- Cabling
- Category-3 or higher for 10BASE-T operation
- Category-5 or higher for 100BASE-TX operation
- Category-5e or higher for 1000BASE-T operation
- Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- IEEE Standard / Network topology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- IEEE 1588 IEEE 802.1Q VLANs IEEE 802.1p IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- System Requirements
- Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
- Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
- DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
- Applications: Desktops, Servers, Workstations
Hardware
- Power: 3.6 W
- Certifications: FCC, CE, RoHS
- Metal Bracket: Full-height end bracket / Low-profile end bracket
- LED Indicators: 1000Mbps: Green LINK light is always on, yellow ATC light is blinking
Environmental
- Operating Temperature: 0 ~ 55 ℃ (32 ~ 131℉)
- Storage Temperature : -40 ~ 70 ℃ (-40 ~ 158 ℉)
- Storage Humidity: 90% Non-condensing relative humidity at 35 ℃
Package Contents
- 1 * PCIe Quad Gigabit ethernet Network Card 82576EB
- 1 * User's Manual
- 1 * Driver CD
- 1 * Low Profile Bracket
