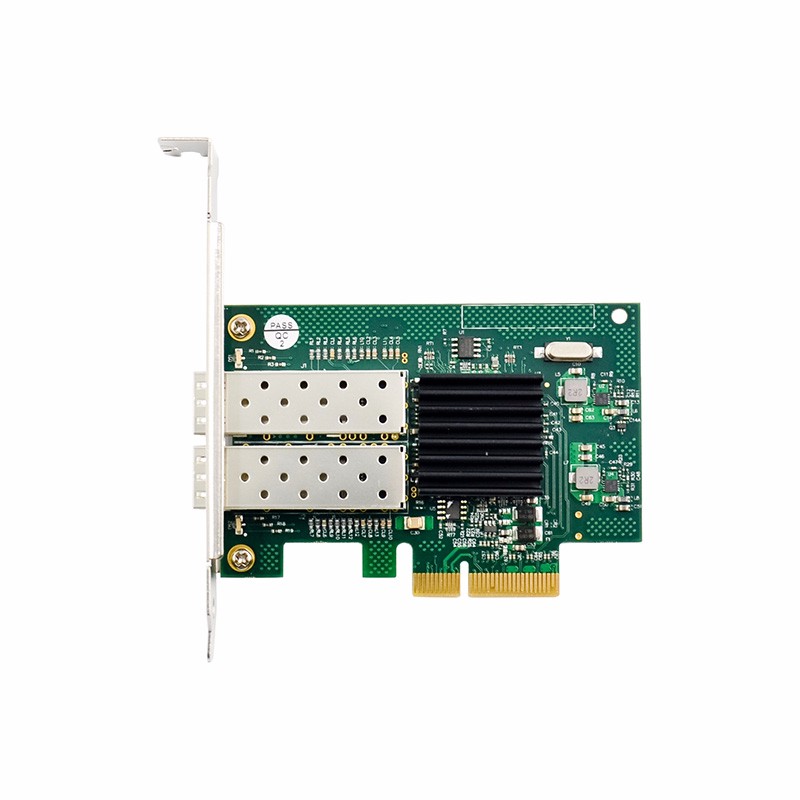

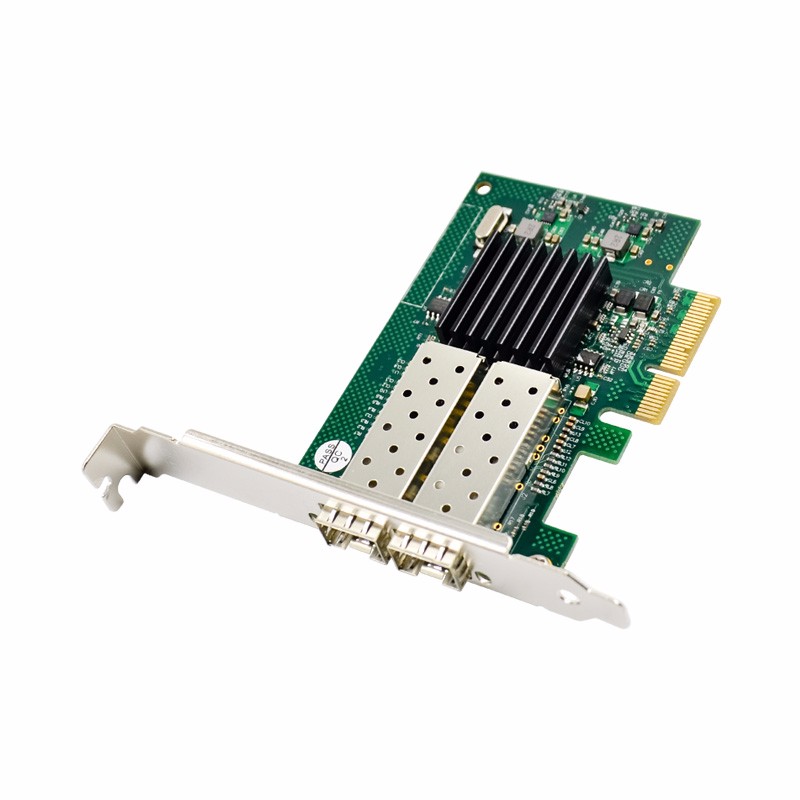

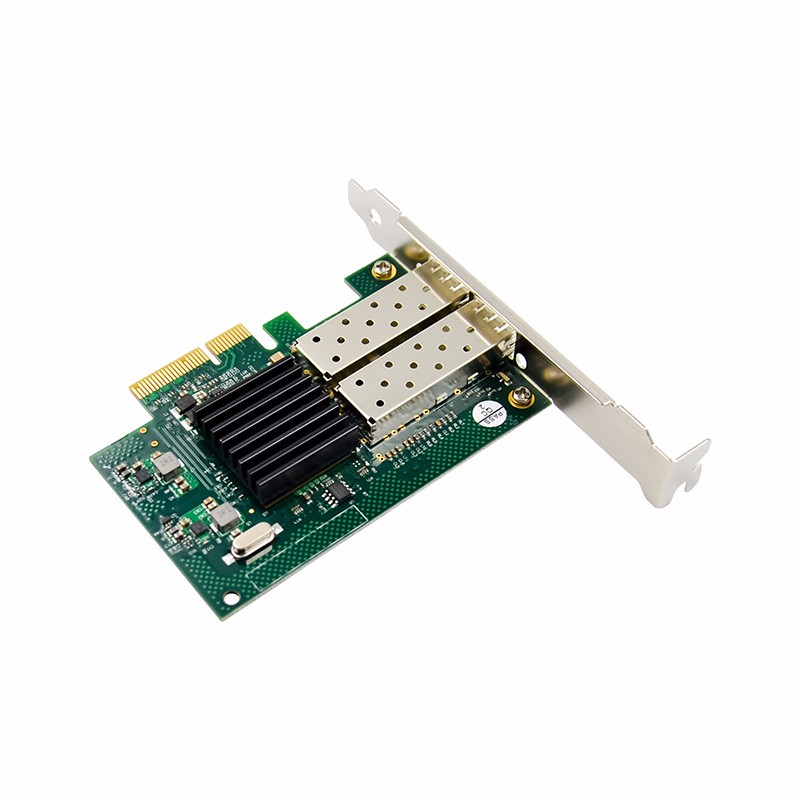

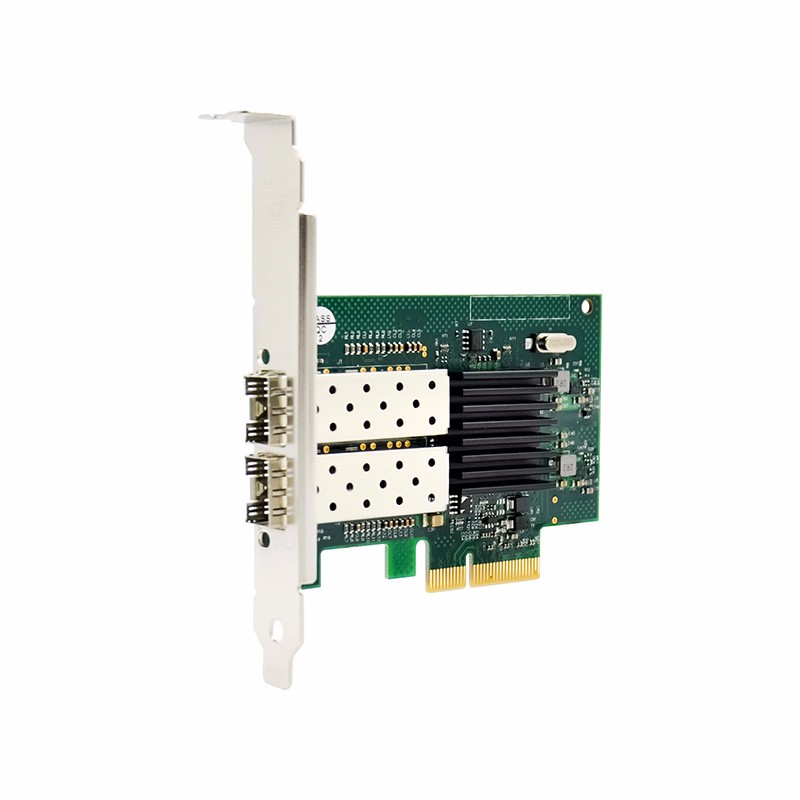

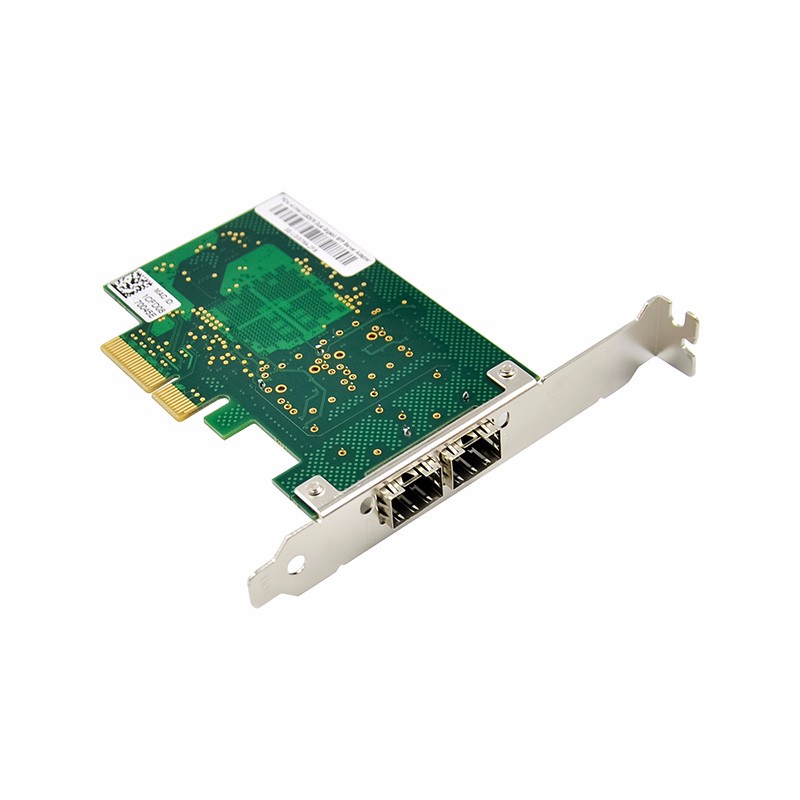

PCIe x4 Dual SFP Port Intel JL82576EB Chipset Gigabit Ethernet Network Adapter
$39.00
- Product Code: PX4-GE-2S-82576
- Availability: In Stock
The Intel JL82576EB chipset Gigabit Ethernet network adapters are designed with performance enhancing features and new power management technologies.
Features
- Halogen-free dual Gigabit Ethernet adapters with copper interface options
- Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
- Scalable iSCSI performance delivering cost-effective SAN connectivity
- High-performing bridgeless design supporting PCI Express* Gen 1.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology
- High-performing, 10/100/1000 Ethernet connection
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Scalable PCI Express* interface provides dedicated I/O bandwidth for I/O-intensive networking applications
- Optimized for virtualized environments
- Flexibility with iSCSI Boot and choice of dual- and quad-port adapters in both fiber and copper
Specifications
- Chipset: Intel®JL82576EB
- Bus Type: PCI Express* 1.1 (2.5GT/s) x4
- Ports: 2 * SFP slots
- Data Rate: 1000 Mbps
- Cabling
- Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- IEEE Standard / Network topology
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)
- OS Compatibility
- Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
- Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
- DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
- Applicable Fields: Desktops, Servers, Workstations
- Hardware
- Power: 3.6 W
- Certifications: FCC, CE, RoHS
- Metal Bracket: Full-height end bracket / Low-profile end bracket
- LED Indicators: Green=1 Gb/s. Not illuminated=no link
- Environmental
- Operating Temperature: 0 ~ 55 ℃ (32 ~ 131℉)
- Storage Temperature: -40 ~ 70 ℃ (-40 ~ 158 ℉)
- Storage Humidity: 90% Non-condensing relative humidity at 35 ℃
Package Contents
- 1 * PCIE JL82576EB Dual SFP Fiber Server NICs
- 1 * User's Manual
- 1 * Driver CD
- 1 * Low profile bracket
