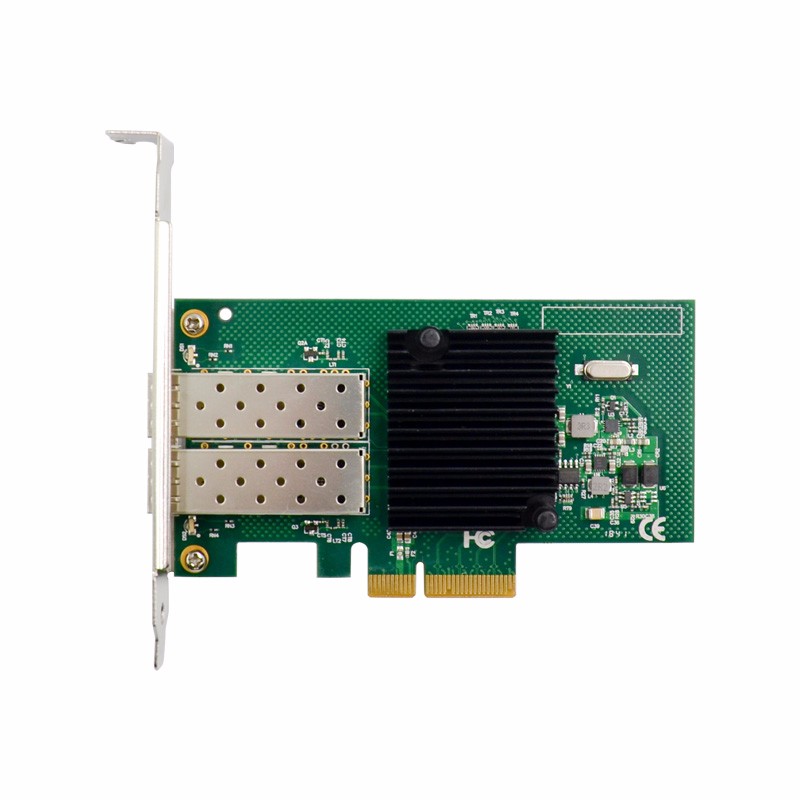

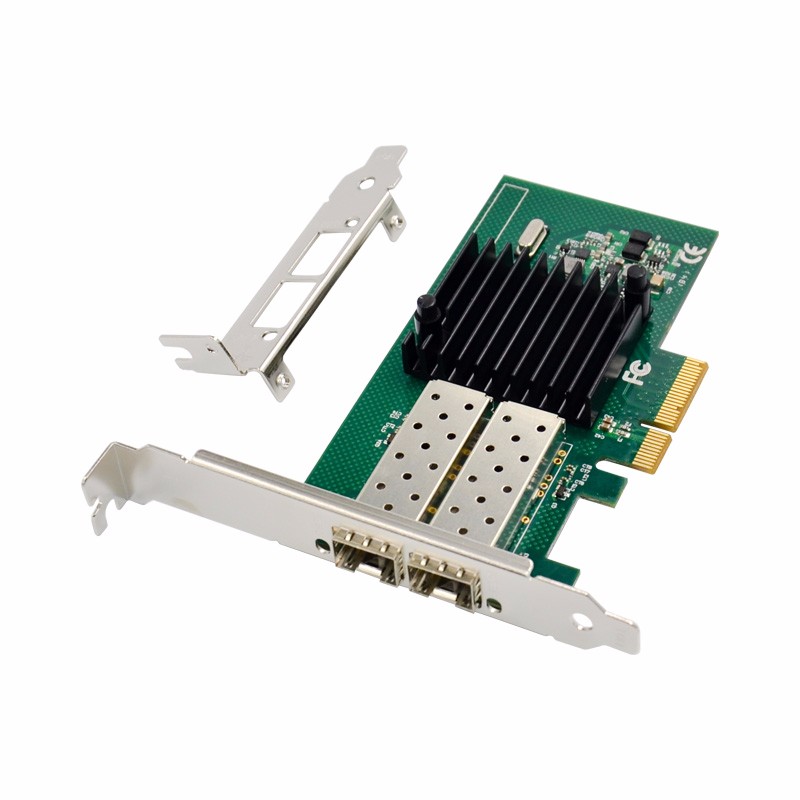

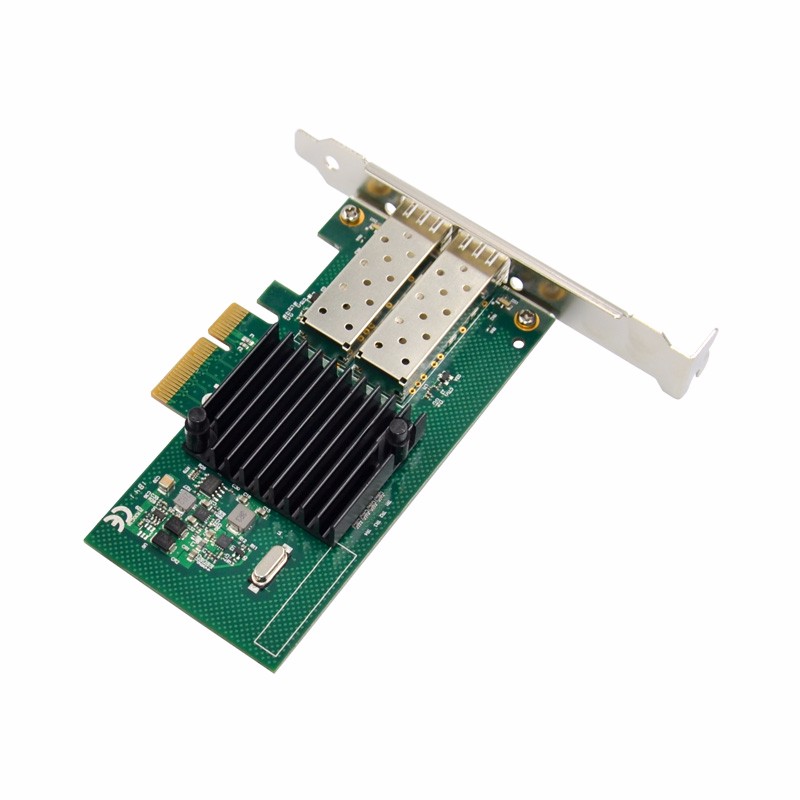

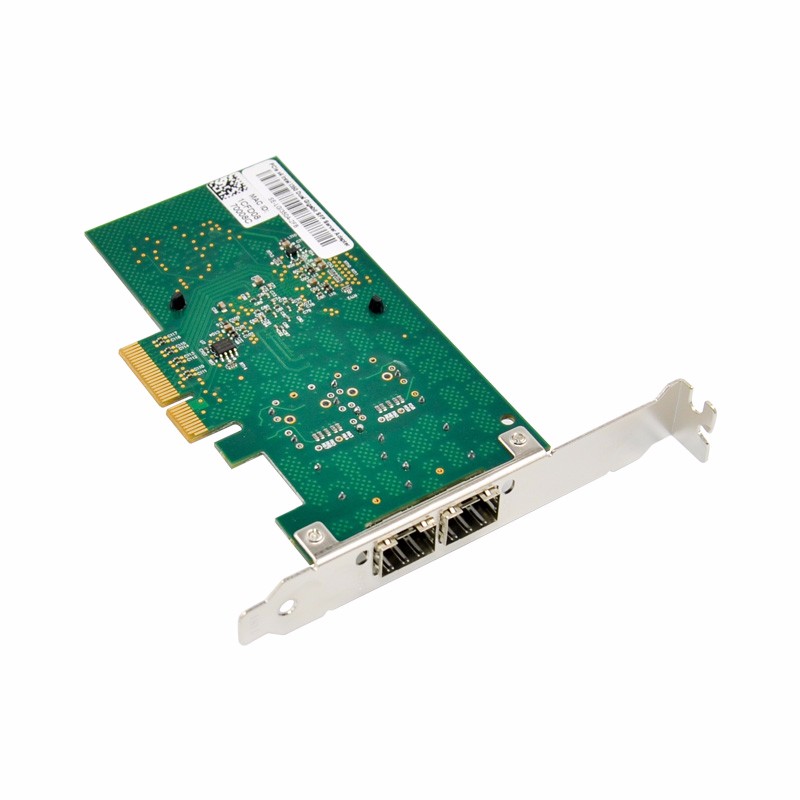

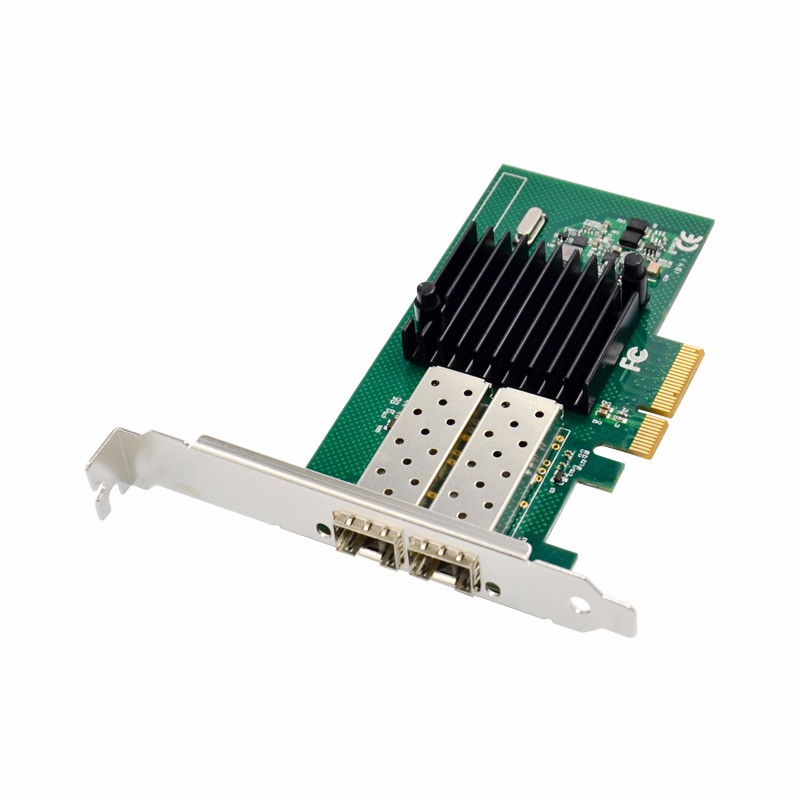

PCIe x4 Dual SFP Port Intel NHI350AM2 Chipset Gigabit Ethernet Network Adapter
$60.00
- Product Code: PX4-GE-2S-I350
- Availability: In Stock
The new Intel® Ethernet Server Adapter I350 family builds on Intel's history of excellence in Ethernet products. Intel continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networkingenvironments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
Features
- Halogen-free dual Gigabit Ethernet adapters with copper interface options
- Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
- Scalable iSCSI performance delivering cost-effective SAN connectivity
- High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
- Reliable and proven Gigabit Ethernet technology
Specifications
- Chipset: Intel NHI350AM2
- Bus Type: PCI Express* 2.1 (5GT/s) , x4
- Connector: 2 * SFP slots
- Data Rate: 1000 Mbps
- Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
- IEEE Standard / Network topology
- IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T
- IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)
- OS Compatibility
- Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
- Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
- DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
- Applicable fields: Desktops, Servers, Workstations
- Hardware
- Power: 5.5 W
- Certifications: FCC, CE, RoHS
- Metal Bracket: Full-height end bracket / Low-profile end bracket
- LED Indicators: Green=1 Gb/s. Not illuminated=no link
- Environmental
- Operating Temperature: 0 ~ 55 ℃ (32 ~ 131℉)
- Storage Temperature: -40 ~ 70 ℃ (-40 ~ 158 ℉)
- Storage Humidity: 90% Non-condensing relative humidity at 35 ℃
Package Contents
- 1 * PCIe I350AM2 Dual Gigabit SFP Fiber Server NIC
- 1 * Quick Install Guide
- 1 * Driver CD
- 1 * Low Profile Bracket
