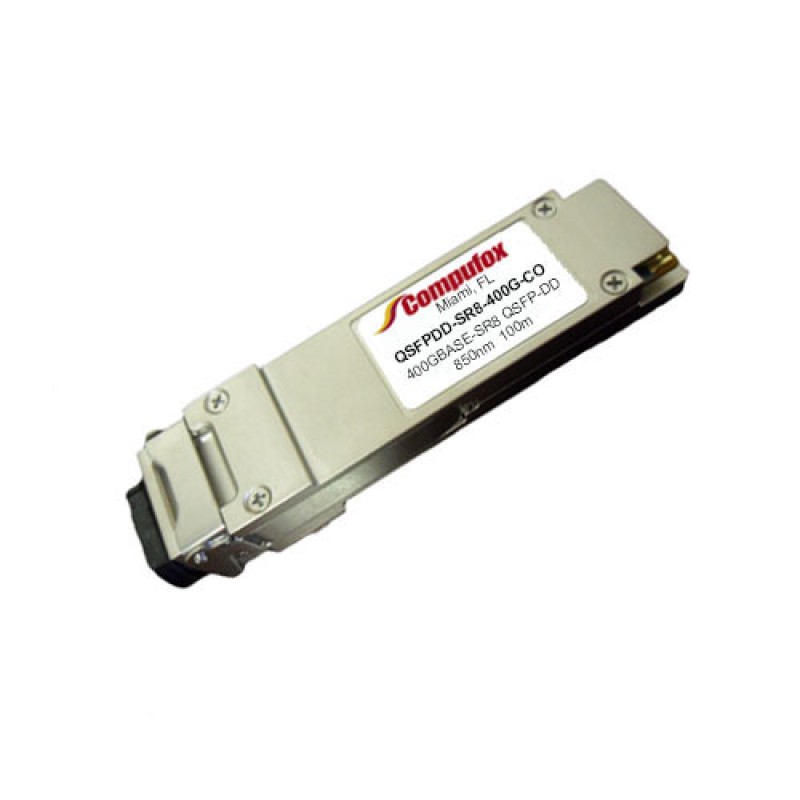

Juniper QSFPDD-SR8-400G Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM Transceiver (MMF, 850nm, 100m, MTP/MPO-16, DOM)
$475.00
- Product Code: QSFPDD-SR8-400G-CO
- Availability: In Stock
Available Options
Juniper Networks QSFPDD-SR8-400G Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO-16, DOM).
Specifications
|
Form
Factor |
QSFP-DD |
Data
Rate |
400Gbps |
|
Wavelength |
850nm
|
Max
Cable Distance |
70m@OM3/100m@OM4 |
|
Connector |
MTP/MPO-16
(APC) |
Media |
MMF |
|
Transmitter
Type |
VCSEL
850nm |
Receiver
Type |
PIN |
|
TX
Power |
-6~4dBm |
Receiver
Sensitivity |
<-7.9dBm |
|
Powerbudget |
1.9dB |
Receiver
Overload |
4dBm |
|
Power
Consumption |
≤10W |
Extinction
Ratio |
3dB |
|
DDM/DOM |
Supported |
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
|
Protocols |
IEEE
802.3cd, QSFP-DD MSA, CMIS 5.0 |
Application |
400GBASE
Data Center |
