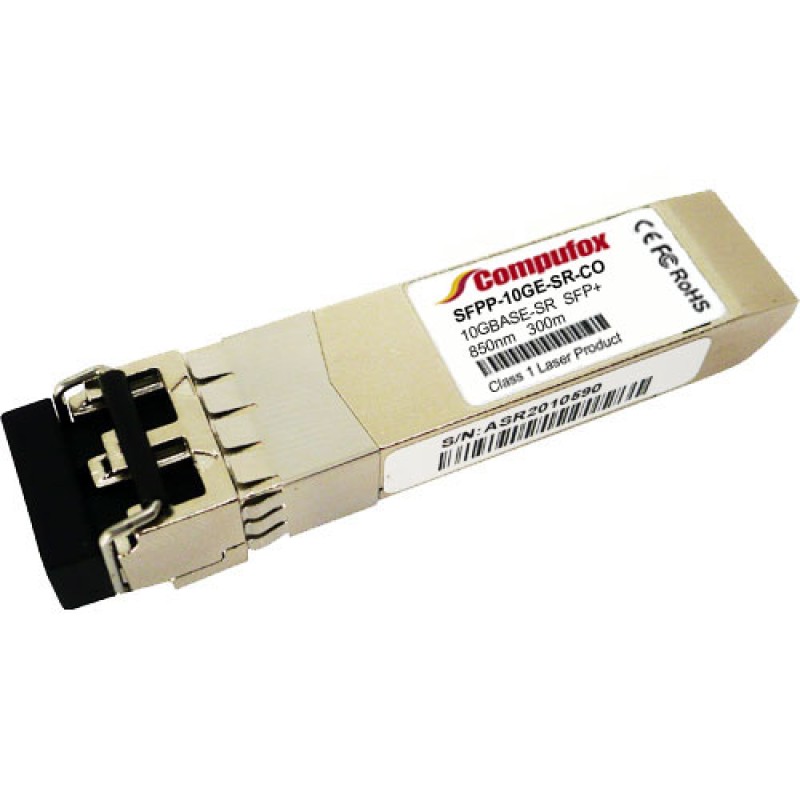

Juniper SFPP-10GE-SR Compatible 10GBASE-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM)
$18.00
- Product Code: SFPP-10GE-SR-CO
- Availability: In Stock
Available Options
Juniper Networks SFPP-10GE-SR Compatible 10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM).
Specifications
|
Form
Factor |
SFP+ |
Data Rate |
10Gbps |
|
Wavelength |
850nm |
Max
Cable Distance |
300m@OM3/400m@OM4 |
|
Connector |
Duplex
LC |
Media |
MMF |
|
Transmitter
Type |
VCSEL |
Receiver
Type |
PIN |
|
TX
Power |
-7.3~-1dBm |
Receiver
Sensitivity |
<
-11.1dBm |
|
Powerbudget |
3.8dB |
Receiver
Overload |
-1dBm |
|
Typical
Power Consumption |
<1W |
Extinction
Ratio |
>3dB |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
IEEE
802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
